Review of Linear Algebra

Introduction

  • Vectors

  • Vector normalization

C++
a.normalize()

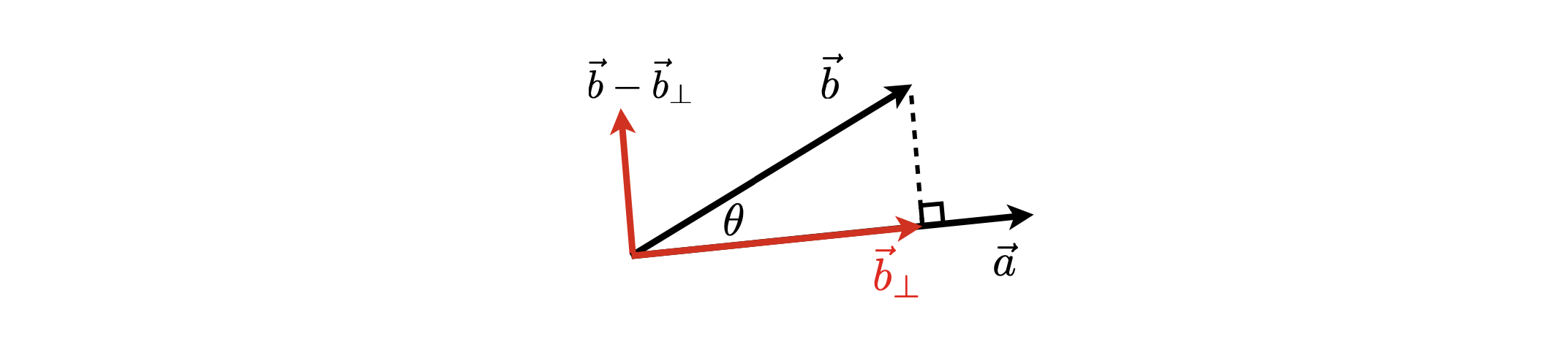

Dot Product

  1. Find angle between two vectors

  2. Find projection

\[ \begin{aligned}&\vec{a}\cdot\vec{b}=\vec{a}^T\vec{b}\\ =&\begin{pmatrix}x_a & y_a & z_ a\end{pmatrix}\begin{pmatrix}x_b\\y_b\\z_b\end{pmatrix}=\begin{pmatrix}x_ax_b+y_ay_b+z_az_b\end{pmatrix}\end{aligned} \]
C++
double dot = a.dot(b);

Cross Product

  1. Determine left / right

  2. Determine inside / outside

\[ \vec{a} \times\vec{b} = A*b=\begin{pmatrix}0 & -z_a & y_a\\z_a & 0 & -x_a\\-y_a & x_a & 0\end{pmatrix}\begin{pmatrix}x_b\\y_b\\z_b\end{pmatrix} \]
C++
Eigen::Vector3d cross = a.cross(b);

Orthonormal Coordinate Frames

Any set of 3 vectors in 3D that $$ |\vec{u}| = |\vec{v}| = |\vec{w}| = 1 $$

\[ \vec{u}\cdot \vec{v} = \vec{v}\cdot \vec{w} = \vec{u}\cdot\vec{w}=0 \]
\[ \vec{p} = (\vec{p}\cdot \vec{u})\vec{u} + (\vec{p}\cdot \vec{v})\vec{v} + (\vec{p}\cdot \vec{w})\vec{w} \]

Matrices

Matrix-Matrix Multiplication

Matrix-Vector Multiplication

Transpose of a Matrix

\[ (AB)^T = B^TA^T \]
C++
a.transposeInPlace()

Identity Matrix and Inverses

\[ I_{3 \times 3} = \begin{pmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{pmatrix} \]
\[ AA^{-1} = A^{-1}A = I \]
\[ (AB)^{-1} = B^{-1}A^{-1} \]
C++
Eigen::Matrix3d identity_matrix = Eigen::Matrix3d::Identity();

Eigen::Matrix3d inverse_matrix = matrix.inverse();

Transformation

Why Transformation?

Viewing: (3D to 2D) projection

Scale (Non-Uniform)

\[ \begin{bmatrix}x'\\y'\end{bmatrix} = \begin{bmatrix}s_x & 0\\0 & s_y\end{bmatrix}\begin{bmatrix}x\\y\end{bmatrix} \]

Reflection Matrix

\[ \begin{bmatrix}x'\\y'\end{bmatrix} = \begin{bmatrix}-1 & 0\\0 & 1\end{bmatrix}\begin{bmatrix}x\\y\end{bmatrix} \]

Shear Matrix

\[ \begin{bmatrix}x'\\y'\end{bmatrix} = \begin{bmatrix}1 & a\\0 & 1\end{bmatrix}\begin{bmatrix}x\\y\end{bmatrix} \]

Rotate

\[ \mathbf{R}_\theta = \begin{bmatrix}\cos \theta & -\sin\theta\\ \sin\theta & \cos \theta\end{bmatrix} \]

Linear Transforms = Matrices

Homogenous Coordinates

Add a third coordinate (w-coordinate)

  • 2D point = \((x, y, 1)^T\)

  • 2D vector = \((x,y,0)^T\)

Matrix representation of translations $$ \begin{pmatrix} x' \ y' \ w' \end{pmatrix} = \begin{pmatrix} 1 & 0 & t_x \ 0 & 1 & t_y \ 0 & 0 & 1 \end{pmatrix} \cdot \begin{pmatrix} x \ y \ 1 \end{pmatrix} = \begin{pmatrix} x + t_x \ y + t_y \ 1 \end{pmatrix} $$

  • vector + vector = vector

  • point - point = vector

  • point + vector = point

  • point + point

\(\begin{pmatrix}x\\y\\w\end{pmatrix}\) is the 2D point \(\begin{pmatrix}x/w\\y/w\\1\end{pmatrix},w\neq 0\)

Affine Transformations

Affine map = linear map + translation $$ \begin{pmatrix} x' \ y' \ 1 \end{pmatrix} = \begin{pmatrix} a & b & t_x \ c & d & t_y \ 0 & 0 & 1 \end{pmatrix} \cdot \begin{pmatrix} x \ y \ 1 \end{pmatrix} $$

2D Transformations

Scale

\[ \mathbf{S}(s_x, s_y) = \begin{pmatrix} s_x & 0 & 0 \\ 0 & s_y & 0 \\ 0 & 0 & 1 \end{pmatrix} \]

Rotation

\[ \mathbf{R}(\alpha) = \begin{pmatrix} \cos \alpha & -\sin \alpha & 0 \\ \sin \alpha & \cos \alpha & 0 \\ 0 & 0 & 1 \end{pmatrix} \]

Translation

\[ \mathbf{T}(t_x, t_y) = \begin{pmatrix} 1 & 0 & t_x \\ 0 & 1 & t_y \\ 0 & 0 & 1 \end{pmatrix} \]

Transform Ording Matters!

3D Transformations

  • 3D point = \((x,y,z,1)^T\)

  • 3D vector = \((x,y,z,0)^T\)

\(\begin{pmatrix}x\\y\\z\\w\end{pmatrix}\) is the 2D point \(\begin{pmatrix}x/w\\y/w\\z/w\\1\end{pmatrix},w\neq 0\)

\[ \begin{pmatrix} x' \\ y' \\ z' \\ 1 \end{pmatrix} = \begin{pmatrix} a & b & c & t_x \\ d & e & f & t_y \\ g & h & i & t_z \\ 0 & 0 & 0 & 1 \end{pmatrix} \cdot \begin{pmatrix} x \\ y \\ z \\ 1 \end{pmatrix} \]

Scale

\[ \mathbf{S}(s_x, s_y, s_z) = \begin{pmatrix} s_x & 0 & 0 & 0 \\ 0 & s_y & 0 & 0 \\ 0 & 0 & s_z & 0 \\ 0 & 0 & 0 & 1 \end{pmatrix} \]

Translation

\[ \mathbf{T}(t_x, t_y, t_z) = \begin{pmatrix} 1 & 0 & 0 & t_x \\ 0 & 1 & 0 & t_y \\ 0 & 0 & 1 & t_z \\ 0 & 0 & 0 & 1 \end{pmatrix} \]

Rotation

\[ \mathbf{R}_x(\alpha) = \begin{pmatrix} 1 & 0 & 0 & 0 \\ 0 & \cos \alpha & -\sin \alpha & 0 \\ 0 & \sin \alpha & \cos \alpha & 0 \\ 0 & 0 & 0 & 1 \end{pmatrix} \]
\[ \mathbf{R}_y(\alpha) = \begin{pmatrix} \cos \alpha & 0 & \sin \alpha & 0 \\ 0 & 1 & 0 & 0 \\ -\sin \alpha & 0 & \cos \alpha & 0 \\ 0 & 0 & 0 & 1 \end{pmatrix} \]
\[ \mathbf{R}_z(\alpha) = \begin{pmatrix} \cos \alpha & -\sin \alpha & 0 & 0 \\ \sin \alpha & \cos \alpha & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 1 \end{pmatrix} \]

Rodrigues’ Rotation Formula

\[ \mathbf{R}(\mathbf{n}, \alpha) = \cos(\alpha) \mathbf{I} + (1 - \cos(\alpha)) \mathbf{n}\mathbf{n}^T + \sin(\alpha) \mathbf{N} \]
\[ \mathbf{N} = \begin{pmatrix} 0 & -n_z & n_y \\ n_z & 0 & -n_x \\ -n_y & n_x & 0 \end{pmatrix} \]

View / Camera Transformation

Define the camera first

  • Position \(\vec{e}\)
  • Look-at / gaze direction \(\vec{g}\)
  • Up direction \(\vec{t}\)
\[ M_{\text{view}} = R_{\text{view}} T_{\text{view}} \]
\[ \mathbf{T}_{\text{view}} = \begin{pmatrix} 1 & 0 & 0 & -x_e\\ 0 & 1 & 0 & -y_e\\ 0 & 0 & 1 & -z_e\\ 0 & 0 & 0 & 1 \end{pmatrix} \]
\[ \mathbf{R}_{\text{view}} = \begin{pmatrix} x_{\hat{g} \times \hat{t}} & y_{\hat{g} \times \hat{t}} & z_{\hat{g} \times \hat{t}} & 0 \\ x_{t} & y_{t} & z_{t} & 0 \\ x_{-g} & y_{-g} & z_{-g} & 0 \\ 0 & 0 & 0 & 1 \end{pmatrix} \]
