Rasterization¶

Projection¶

Orthographic Projection¶

\([l,r]\times[b,t]\times[f,n]\) to \([-1,1]^3\)

\[ \mathbf{M}_{\text{ortho}} = \begin{pmatrix} \frac{2}{r-l} & 0 & 0 & 0 \\ 0 & \frac{2}{t-b} & 0 & 0 \\ 0 & 0 & \frac{2}{n-f} & 0 \\ 0 & 0 & 0 & 1 \end{pmatrix} \begin{pmatrix} 1 & 0 & 0 & -\frac{r+l}{2} \\ 0 & 1 & 0 & -\frac{t+b}{2} \\ 0 & 0 & 1 & -\frac{n+f}{2} \\ 0 & 0 & 0 & 1 \end{pmatrix} \]

Perspective Projection¶

\[ \mathbf{M}_{\text{persp}\to\text{ortho}} = \begin{pmatrix} n & 0 & 0 & 0 \\ 0 & n & 0 & 0 \\ 0 & 0 & n+f & -nf \\ 0 & 0 & 1 & 0 \end{pmatrix} \]

\[ \mathbf{M}_{\text{persp}} = \mathbf{M}_{\text{ortho}}\mathbf{M}_{\text{persp}\to\text{ortho}} \]

Viewing¶

Perspective Projection¶

\[ \tan{\dfrac{\text{fovY}}{2}=\dfrac{t}{|n|}} \]

\[ \text{aspect} = \dfrac{r}{t} \]

Canonical Cube to Screen¶

\([-1,1]^2\to [0, \text{width}]\times [0, \text{height}]\)

\[ \mathbf{M}_{\text{viewport}} = \begin{pmatrix} \dfrac{\text{width}}{2} & 0 & 0 & \dfrac{\text{width}}{2}\\ 0 & \dfrac{\text{height}}{2} & 0 & \dfrac{\text{height}}{2}\\ 0 & 0 & 1 & 0\\ 0 & 0 & 0 & 1 \end{pmatrix} \]

Quiz

If we transform frustum into cuboid. For those points between \(n\) and \(f\), are they close to \(n\) or \(f\)?

Solution

This solution is from BBS @striveant

First, \(\mathbf{M}_{\text{persp}\to\text{ortho}}\) is given above. Let \(A = \begin{pmatrix}0\\0\\z\\1\end{pmatrix}\), where \(z = \dfrac{n+f}{2}\).

Apply \(\mathbf{M}_{\text{persp}\to\text{ortho}}\) on \(A\):

\[ \mathbf{M}_{\text{persp}\to\text{ortho}} A = \begin{pmatrix} 0\\0\\\frac{n+f}{2}(n+f)-nf\\\frac{n+f}{2} \end{pmatrix} = \begin{pmatrix} 0\\0\\\frac{n^2+f^2}{n+f}\\1 \end{pmatrix} \stackrel{\text{def}}{=} \begin{pmatrix}0\\0\\z'\\1\end{pmatrix} \]

Since \(f<z<n<0\),

\[ z-z' = \frac{n+f}{2} - \frac{n^2+f^2}{n+f} = -\frac{(n-f)^2}{2(n+f)} > 0 \]

This means the point is closer to \(f\).

More general,

\[ \mathbf{M}_{\text{persp}\to\text{ortho}} A = \begin{pmatrix} 0\\0\\z(n+f)-nf\\z \end{pmatrix}= \begin{pmatrix} 0\\0\\n+f-\frac{nf}{z}\\1 \end{pmatrix} \stackrel{\text{def}}{=} \begin{pmatrix}0\\0\\z'\\1\end{pmatrix} \]

\[ \begin{aligned} z-z' &= z - (n+f-\frac{nf}{z})\\ &= (z-n) - f(1-\frac{n}{z})\\ &= \frac{1}{z}(z-n)(z-f) > 0 \end{aligned} \]

This means the point is closer to \(f\).

Antialiasing¶

Before Antialiasing¶

Sampling Artifacts¶

Jaggies, Moire, Wagon wheel effect...

Idea: Blurring Before Sampling¶

Sample then filter, WRONG!

Frequency Domain¶

Fourier Series & Transform¶

Higher Frequencies Need Faster Sampling
Undersampling Creates Frequency Aliases

Filtering = Getting rid of certain frequency contents

Filtering = Convolution¶

Convolution in the spatial domain = Multiplication in the frequency domain

Option 1¶

Filter by convolution in the spatial domain

Option 2¶

Transform to frequency domain (Fourier transform)
Multiply by Fourier transform of convolution kernel
Transform back to spatial domain (inverse Fourier)

Sampling = Repeating Frequency Contents¶

Sparse sampling will cause aliasing

How can we reduce aliasing error?

Option 1: Increase samling rate¶

Essentially increasing the distance between replicas in the Fourier domain
Higher resolution displays, sensors, framebuffers...
BUT: costly & may need very high resolution

Option 2: Antialiasing¶

Making Fourier contents "narrower" before repeating
i.e. Filtering out high frequencies before sampling

Antialiasing¶

A 1 pixel-width box filter (low pass, blurring)

Antialiasing By Averaging Values in Pixel Area¶

Solution:¶

Convolve: \(f(x,y)\) by 1-pixel box-blur
Then sample at every pixel's center

Antialiasing by Computing Average Pixel Value¶

In rasterizing one triangle, the average value inside a pixel area of \(f(x,y) = inside(triangle,x,y)\) is equal to the area of the pixel covered by the triangle.

average

Antialiasing By Supersampling (MSAA)¶

MSAA = Muti-Sample-Anti-Aliasing

Supersampling¶

Sampling multiple locations within a pixel

Step 1¶

Take \(N\times N\) samples in each pixel

Step 2¶

Average the \(N\times N\) samples "inside" each pixel

Step 3 Result¶

Antialiasing Today¶

No free lunch!

Cost of MSAA

Milestones

FXAA (Fast Approximate AA)
TAA (Temporal AA)

Super resolution / super sampling

From low res to high res
Essentially still "not enough samples" problem
DLSS (Deep Learning Super Sampling)

Visibility / Occlusion¶

Painter's Algorithm¶

Requires sorting in depth, can have unresolvable depth order

Z-Buffer (深度缓存)¶

Idea¶

Store current min. z-value for each sample (pixel)
Needs an additional buffer for depth values
frame buffer stores color values
depth buffer (z-buffer) stores depth

[!IMPORTANT]

For simplicity we suppose z is always positive

Step¶

Initialize depth buffer to \(\infty\)
During rasterization:

C

for (each triangles T)
  for (eachsample(x, y, z) in T)
    if (z < zbuffer[x, y])           // closest sample so far
      framebuffer[x, y] = rgb;       // update color
      zbuffer[x, y] = z;             // update depth
    else
        ;                   // do nothing, this sample is occluded

Complexity¶

\(O(n)\) for \(n\) triangles (assuming constant coverage)

Most important visibility algorithm, Implemented in hardware for all GPUs

Shading¶

Definition in this course: The process of applying a material to an object.

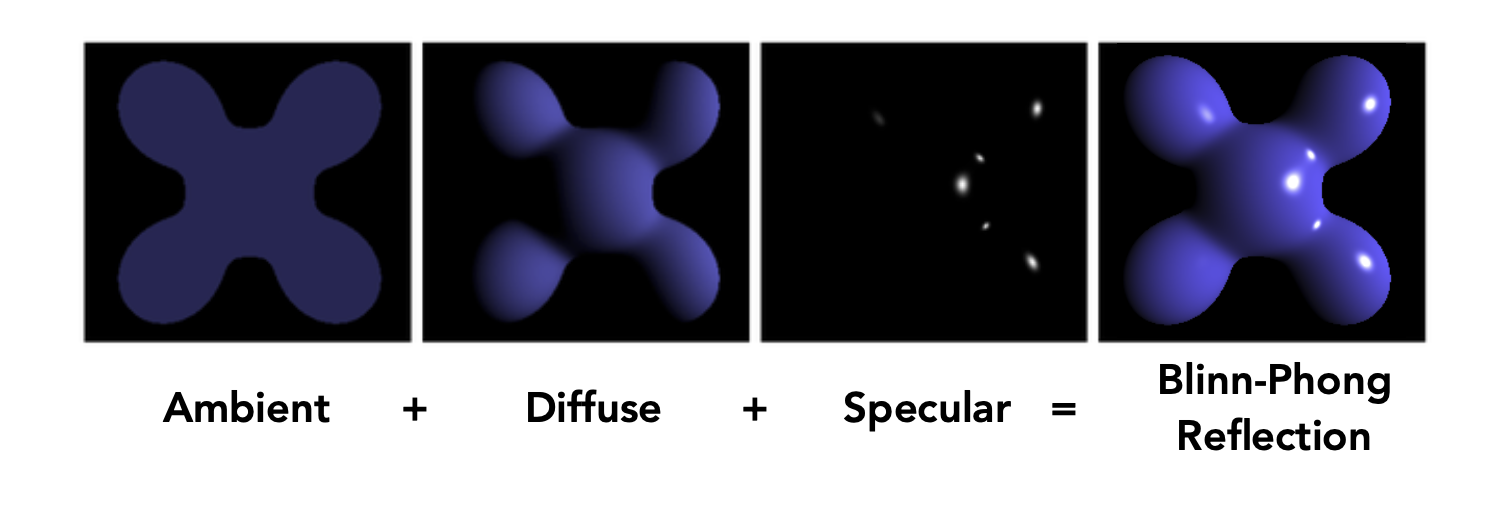

Blinn-Phong Reflectance Model¶

\[ L = L_a + L_d + L_s \]

Compute light reflected toward camera

No shadows will be generated! (shading \(\neq\) shadow)

Diffuse Reflection¶

Lambert's Cosine Law:

Shading independent of view direction

\[ L_d = k_d(I/r^2)\max(0, \mathbf{n}\cdot\mathbf{l}) \]

Specular Term¶

Intensity depends on view direction

Bright near mirror reflection direction
\(\mathbf{v}\) close to mirror direction \(\Leftrightarrow\) half vector near normal

\[ \mathbf{h} = \text{bisector}(\mathbf{v},\mathbf{l}) = \frac{\mathbf{v} + \mathbf{l}}{\|\mathbf{v}+\mathbf{l}\|} \]

\[ \begin{aligned} L_s &= k_s(I/r^2)\max(0, \cos\alpha)^p\\ &= k_s(I/r^2)\max(0, \mathbf{n} \cdot \mathbf{h})^p \end{aligned} \]

Ambient Term¶

Shading that does not depend on anything

Add constant color to account for disregarded illumination and fill in black shadows
This is approximate / fake!

\[ L_a = k_aI_a \]

Shading Frequencies¶

Shade each triangle (flat shading)

Shade each vertex (Gourand shading)

Shade each pixel (Phong shading)

Texture¶

Texture Mapping¶

Surfaces are 2D¶

Screen space \((x_s,y_s)\) \(\to\) World space \((x,y,z)\) \(\to\) Texture space \((u,v)\)

Interpolation Across Triangles: Barycentric Coordinates¶

Barycentric Coordinates¶

A coordinate system for triangles \((\alpha,\beta,\gamma)\)

\[ (x,y) = \alpha A+\beta B+\gamma C\\ \alpha + \beta + \gamma = 1 \]

is inside the triangle if all three coordinates are non-negative

Geometric Viewpoint: Proportional Areas¶

\[ \begin{aligned} \alpha = \frac{A_A}{A_A + A_B + A_C}\\ \beta = \frac{A_B}{A_A + A_B + A_C}\\ \gamma = \frac{A_C}{A_A + A_B + A_C} \end{aligned} \]

Formulas¶

\[ \begin{aligned} \alpha &= \frac{-(x - x_B)(y_C - y_B) + (y - y_B)(x_C - x_B)}{-(x_A - x_B)(y_C - y_B) + (y_A - y_B)(x_C - x_B)}\\ \beta &= \frac{-(x - x_C)(y_A - y_C) + (y - y_C)(x_A - x_C)}{-(x_B - x_C)(y_A - y_C) + (y_B - y_C)(x_A - x_C)}\\ \gamma &= 1 - \alpha - \beta \end{aligned} \]

Applying Textures¶

Simple Texture Mapping: Diffuse Color¶

Text Only

for each rasterized screen sample (x,y):
  (u,v) = evaluate texture coordinate at (x,y);
  texcolor = texture.sample(u,v);
  set sample's color to texcolor;

Texture Magnification¶

(What if the texture is too small?)

Bilinear Interpolation¶

Take 4 nearest sample locations, with texture values as labeled
And fractional offsets \((s,t)\) as shown
Linear interpolation (1D)

\(\text{lerp}(x,v_0,v_1) = v_0 + x(v_1 - v_0)\)
Two helper lerps

\(u_0 = \text{lerp}(s, u_{00}, u_{10})\)

\(u_1 = \text{lerp}(s, u_{01}, u_{11})\)
Final vertical lerp, to get result:

\(f(x,y) = \text{lerp}(t, u_0, u_1)\)

Bilinear interpolation usually gives pretty good results at reasonable costs

(What if the texture is too large?)

Mipmap¶

Level = \(D\)

Computing Mipmap Level \(D\)¶

\[ D = \log_2L \]

\[ L = \max\left(\sqrt{\left(\frac{\text{d}u}{\text{d}x}\right)^2 + \left(\frac{\text{d}v}{\text{d}x}\right)^2},\sqrt{\left(\frac{\text{d}u}{\text{d}y}\right)^2 + \left(\frac{\text{d}v}{\text{d}y}\right)^2}\right) \]

Trilinear Interpolation¶

Bilinear result in Mipmap Level \(D\) + Bilinear result in Mipmap Level \(D+1\)

Applications of Texture¶

Bump Mapping¶

Adding surface normal per pixel (for shading computations only)

Original surface normal \(n(p) = (0, 0, 1)\)
Derivative at \(p\) are
- \(\text{d}p/\text{d}u = c_1 * [h(u+1)-h(u)]\)
- \(\text{d}p/\text{d}v = c_2 * [h(v+1)-h(v)]\)
Perturbed normal is then \(n(p) = (-\text{d}p/\text{d}u,\text{d}p/\text{d}v, 1).\text{normalized}()\)

Displacement Mapping¶

A more advanced approach

Uses the same texture in bumping mapping
Actually moves the vertices

Graphics (Real-Time Rendering) Pipline¶

Graphics Pipline¶

Vertex Processing: Model, View, Projection transforms
Triangle Processing
Rasterization: Sampling triangle coverage
Fragment Processing: Z-Buffer Visibility Tests, Shading, Texture mapping
Framebuffer Operations
