Thread-Level Parallelism¶

Threads¶

Threads (short for thread of execution) is a single stream of instructions.
Each thread has:
- Its own registers (including stack pointer)
- Its own program counter (PC)
- Shared memory (heap, global variables) with other threads
Each processor provides one (or more) hardware threads (through multi-core or single-core multithreading, later) that actively execute instructions
Within a given program’s process, threads can run concurrently.
Operating system (OS) multiplexes multiple software threads onto the available hardware threads

Fork-Join Model¶

Fork-Join model: A program / process can split, or fork itself into separate threads, which can (in theory) execute concurrently.

Main thread executes sequentially until first parallel task region.
Fork: Main thread then creates a team of parallel subthreads.
Join: When subthreads complete their parallel task region, they synchronize and terminate, leaving only the main thread.

OpenMP¶

OpenMP: Threads¶

C

#include <omp.h>

C

#pragma omp parallel
{
    // This code is executed by all threads
}

OpenMP creates as many threads as specified in the environment variable OMP_NUM_THREADS.

Set this variable to max number of threads you want to use
Generally, default: (# physical cores) * (# threads/core). Use lscpu command to obtain the numbers (e.g. 6 physical cores * 2 threads/core = 12 threads)

OpenMP threads are OS (software) threads, which are then multiplexed onto available hardware threads.

OpenMP Intrinsic	Description
`omp_set_num_threads(x)`	Set number of threads to `x`.
`num_th = omp_get_num_threads()`	Get number of threads.
`th_ID = omp_get_thread_num()`	Get thread ID number.

OpenMP: Shared/Private Variables¶

Shared variables: All threads read/write the same variable.
- Variable declared outside of parallel region
- Heap-allocated variables
- Static variables
Private variables: Each thread has its own copy of the variable.
- Variables declared inside parallel region (recall separate stack frames)

C

int var1, var2;
char *var3 = malloc(...);
#pragma omp parallel private(var2)
{
    int var4;
    // var1 shared (default)
    // var2 private
    // var3 shared (heap)
    // var4 private (thread’s stack)
    ...
}

Data Race¶

Two memory accesses form a data race if:
- They are from different threads to the same location
- At least one is a write, and
- They occur one after another.
Recall thread model: shared memory.
- For a given thread, these two operations don't necessarily happen together...! Thread scheduling is non-deterministic.
  - Read current value of x
  - Write new value of x

Not a data hazard!

Data hazard: Sequential instructions have data dependencies during concurrent execution (instruction-level parallelism via pipelining).
Here, even with no ILP, can have nondeterministic results. This results from lack of synchronization on which thread accesses memory first.

Data Race Example

C

int x = 0;
#pragma omp parallel
{
    x = x + 1;
}

x could be 0~ # threads.

OpenMP Synchronization¶

To enforce multithreaded program correctness, we often need to synchronize threads, i.e., coordinate their execution.
- Most commonly, know when one task is finished writing so that it is safe for another to read.

Critical Sections with OpenMP¶

A critical section is a segment of code that must be executed by a single thread at a time, thereby enforcing synchronization.

C

#pragma omp barrier

Forces all threads to wait until all threads have hit the barrier.

C

#pragma omp critical

Creates a critical section within a parallel code segment; only one thread can run a critical section at a time.

OpenMP has very restrictive parallelism.

Really only good for parallelizing loops
- If your critical section is too large, then effectively serial program → Amdahl's law quickly rears its ugly head
- If critical sections not defined well, can run into deadlock.

Lock Synchronization¶

Use a “Lock” to grant access to a region (critical section) so that only one thread can have the lock and operate at a time
- Need all processors to be able to access the lock, so use a location in shared memory as the lock
Processors read lock and either wait (if locked) or set lock and go into critical section
- 0 means lock is free / open / unlocked / lock off
- 1 means lock is set / closed / locked / lock on
Locks are one approach to implementing thread synchronization.
Suppose lock in shared memory @ 0x5555 0000
Pseudocode:

Text Only

Check lock @ 0x5555 0000
Set lock @ 0x5555 0000
Critical section (e.g. change shared variables)
Unset lock @ 0x5555 0000

Two operations, formally:
- Acquire: try to acquire the lock. If successful, keep going. Otherwise, wait and try later;
- Release: Unlock and continue (only works if we originally had the lock)

Lock Synchronization Realization¶

Hardware Synchronization¶

Hardware support required to prevent an interloper (another thread) from changing the value
- Atomic read/write memory operation (all other operations must to happen strictly before/after the read/write)
- No other access to the location allowed between the read and write
How to implement in software?
- Single instruction: atomic swap of register ↔ memory through atomic instructions;
- Pair of instructions: one for read (and lock), one for write (and unlock);
Needed even on uniprocessor systems
- Interrupts can happen: can trigger thread context switches...

RISC-V: Two solutions¶

Option 1: Read/Write Pairs
- Pair of instructions for “linked” read and write
- Load-reserved and Store-conditional
- No other access permitted between read and write
- Must use shared memory (multiprocessing)
Option 2: Atomic Memory Operations
- Atomic swap of register ↔ memory

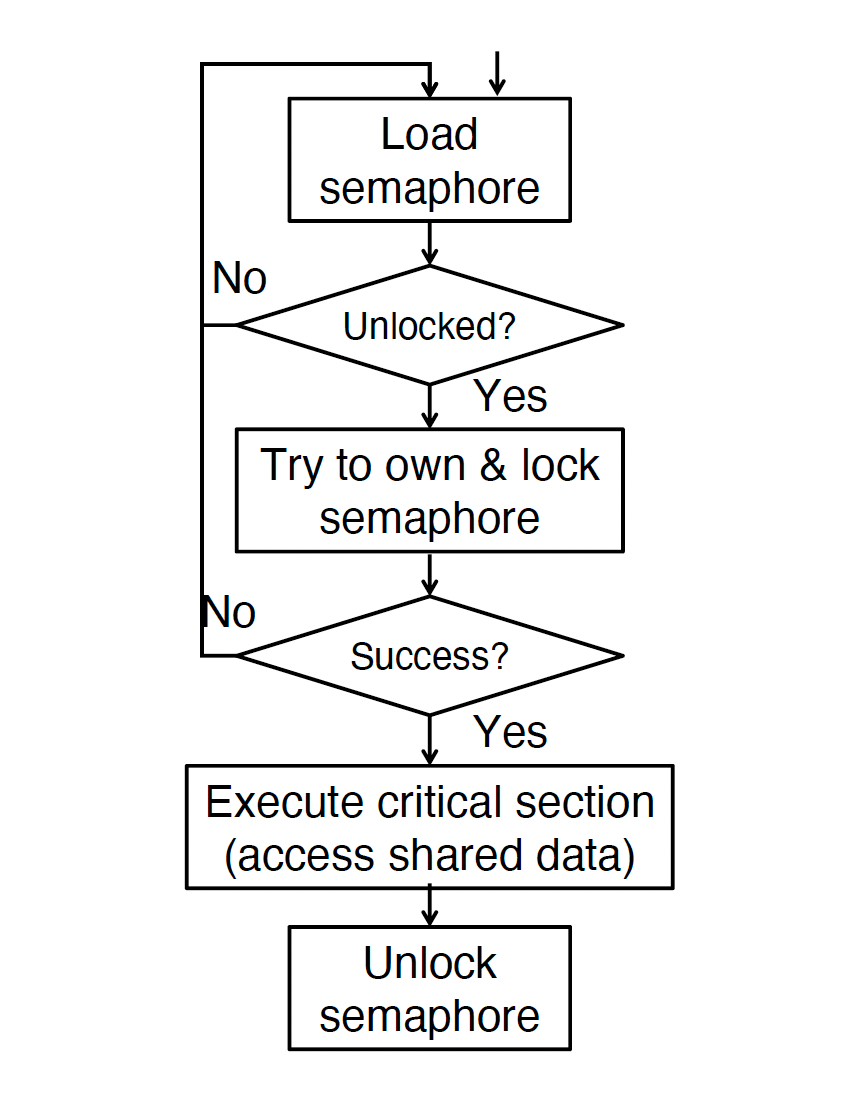

Option 1: Read/Write Pairs¶

Load-reserved instruction: lr rd, rs
- Load the word (doubleword) pointed to by rs into rd, and register a (hardware thread) reservation set
Store-conditional: sc rd, rs1, rs2
- Store the value in rs2 into the memory location pointed to by rs1, only if the reservation is still valid and set the status in rd
  - Returns 0 (success) to rd if location has not changed since the lr
  - Returns nonzero (failure) to rd if location has changed: Actual store will not take place
- Invalid the (hardware thread) reservation whether success or not

C

    li t2, 1
Try:
    lr t1, s1
    bne t1, zero, Try
    sc t0, s1, t2
Locked:
    # critical section
Unlocked:
    sw zero, 0(s1)

Option 2: RISC-V Atomic Memory Operations (AMOs)¶

Encoded with an R-type instruction format
- swap, add, and, or, xor, max, min
- AMOSWAP rd, rs2, (rs1)
- AMOADD rd, rs2, (rs1)
Take the value pointed to by rs1
- Load it into rd
- Apply the operation to that value with the contents in rs2
  - If rs2 = rd, use the old value in rd
- Store the result back to where rs1 is pointed to
This allows atomic swap as a primitive
- It also allows "reduction operations" that are common to be efficiently implemented
