Parallelism¶

Parallelism Overview¶

Parallel Requests
Parallel Threads
Parallel Instructions
Parallel Data
Hardware Descriptions
Programming Languages

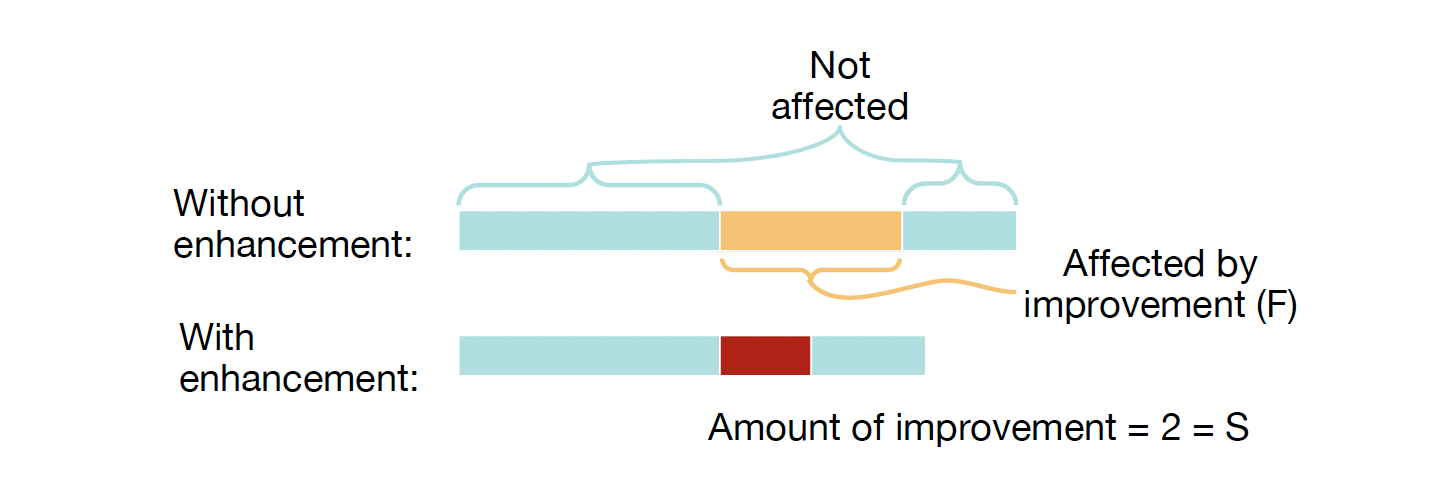

Amdahl's Law¶

\[ \text{Execution time after improvement} = \frac{\text{Execution time affected by improvement}}{\text{Amount of improvement}} + \text{Execution time not affected} \]

\[ \text{Speed-up} = \frac{\text{Original execution time}}{\text{Execution time after improvement}} = \frac{1}{(1 - F) + \frac{F}{S}} \]

Strong and Weak Scaling¶

Strong scaling: when speedup can be achieved on a parallel processor without increasing the size of the problem;
Weak scaling: when speedup is achieved on a parallel processor by increasing the size of the problem proportionally to the increase in the number of processors

Flynn's Taxonomy¶

Single Instruction Single Data (SISD)¶

Sequential computer that exploits no parallelism in either the instruction or data streams. Examples of SISD architecture are traditional uniprocessor machines.
- E.g. Our RISC-V processor up to now;
- Superscalar is SISD because programming model is sequential

Single Instruction Multiple Data (SIMD)¶

SIMD computer exploits multiple data streams against a single instruction stream to operations that may be naturally parallelized.
- Intel SIMD instruction extensions
- NVIDIA Graphics Processing Unit (GPU)
- Vector processors

Multiple Instruction Multiple Data (MIMD)¶

Multiple autonomous processors simultaneously executing different instructions on different data.
- Multicore
- Warehouse-scale computers (WSC)

Multiple Instruction Single Data (MISD)¶

Multiple-Instruction, Single-Data stream computer that exploits multiple instruction streams against a single data stream.
- Rare, mainly of historical interest only
- Some literatures categorize systolic array as MISD

SIMD¶

SIMD Architecture¶

Instruction: One instructinon is fetched & decoded for entire operation
Register: Use registers (128-bit XMM, 256-bit YMM, 512-bit ZMM) to store multiple data
Pipelining & Parallelism: Data loading, ALU operation, and data storing are pipelined and parallelized
Special Operation Unit: Use vector operation unit to perform SIMD operations (SSE/AVX, ARM NEON, RISC-V Vector)

Loop Unrolling¶

Unroll loop and adjust iteration rate to reveal more DLP than available in a single iteration of a loop.

C

for (i = 1000; i > 0; i--) {
    x[i] = x[i] + s;
}

C

for (i = 1000; i > 0; i -= 4) {
    x[i] = x[i] + s;
    x[i-1] = x[i-1] + s;
    x[i-2] = x[i-2] + s;
    x[i-3] = x[i-3] + s;
}

Given a loop with $n$ iterations, $k$ copies of the body of the loop, and assume $n \text{ mod } k \neq 0$,
Then we will run the loop with 1 copy of the body $n \text{ mod } k$ times, and with $k$ copies of the body $\left\lfloor \frac{n}{k} \right\rfloor $ times.

RISC-V Vector Extension¶

32 vector registers
Need to setup length of data and number of parallel registers to work on before usage (vconfig)!
vflw.s: vector float load word . stride: load a single word, put in v1 ‘vector length’ times
vsetvl: ask for certain vector length – hardware knows what it can do (maxvl)!

Text Only

    # assume x1 contains size of array
    # assume t1 contains address of array
    # assume x4 contains address of scalar s
    vconfig 0x63        # 4 vregs, 32b data(float)
    vflw.s v1.s, 0(x4)  # load scalar value to v1

loop:
    vsetvl x2, x1       # will set vl and x2 both to min(maxvl, x1)
    vflw v0, 0(t1)      # will load `vl` elements out of `vec`
    vfadd.s v2, v1, v0  # do the add
    vsw v2, 0(t1)       # store result back to `vec`
    slli x5, x2, 2      # bytes consumed from `vec` (x2 * sizeof(float))
    add t1, t1, x5      # increment `vec` pointer
    sub x1, x1, x2      # subtract from total (x1) work done this iteration
    bne x1, x0, loop    # if x1 not yet zero, still work to do
