Operating System¶

OS¶

Resource Management: CPU scheduling, memory allocation, and I/O device coordination.
Process Management: Loading, isolating, and context-switching processes.
System Call Interface: Provides ecall (RISC-V) or software interrupt entry points for user programs to request file, network, and device services.

Boot¶

One of the first things that runs when your computer starts (right after firmware/bootloader)

What happens at Boot?

When the computer switches on, the CPU executes instructions from some start address (stored in Flash ROM)

BIOS: Find a storage device and load first sector (block of data)
Bootloader (stored on, e.g., disk): Load the OS kernel from disk into a location in memory and jump into it.
OS Boot: Initialize services, drivers, etc.
Init: Launch an application that waits for input in loop (e.g., Terminal/Desktop/...)

UEFI: Unified Extensible Firmware Interface¶

I/O, Interrupt & Exception¶

Memory-mapped I/O¶

Rate Mismatch¶

Polls vs. Interrupts¶

Processor: Polls vs. Interrupts

PollingInterrupts

e.g., "30 times per second"
Processor reads from control register in loop
Wait for device to set ready bit in control reg. (0→1) indicates "data available" (for input device) or "ready to accept data" (for output device);
Then loads from/writes to data reg.
I/O device resets control reg. (1→0)

Avoid wasting processor resources for low data rate devices (e.g., mouse, keyboard)
Processor runs as usual
Occurs when I/O is ready
Interrupt current program
Transfer control to the trap handler in the operating system

Polling¶

I/O Polling Example¶

Input: Read from keyboard into a0

Text Only

          li t0, 0xffff0000      # ffff0000
Waitloop: lw t1, 0(t0)           # control
          andi t1, t1,0x1
          beq t1, zero, Waitloop
          lw a0, 4(t0)           # data

Output: Write to display from a0

Text Only

          li t0, 0xffff0000      # ffff0000
Waitloop: lw t1, 8(t0)           # control
          andi t1, t1,0x1
          beq t1, zero, Waitloop
          sw a0, 12(t0)          # data

Cost of Polling¶

Assume for a processor with a 1GHz clock it takes 400 clock cycles for a polling operation (call polling routine, accessing the device, and returning). Determine % of processor time for polling

Mouse: polled 30 times/sec so as not to miss user movement
Mouse Polling [clocks/sec] = 30 [polls/s] * 400 [clocks/poll] = 12K [clocks/s]
% Processor for polling: 12*103 [clocks/s] / 1*109 [clocks/s] = 0.0012%

Polling mouse little impact on processor

Interrupts¶

Interrupt program when I/O ready, return when done with data transfer
Allow to register (post) interrupt handlers: functions that are called when an interrupt is triggered

Interrupt-driven I/O¶

Incoming interrupt suspends instruction stream
Looks up the vector (function address) of a handler in an interrupt vector table stored within the CPU
Perform a jal to the handler (needs to store any state)
Handler run on current stack and returns on finish (thread doesn’t notice that a handler was run)

Traps, Interrupts & Exceptions¶

Interrupt - caused by an event external to current running program (e.g. key press, mouse activity)
Asynchronous to current program, can handle interrupt on any convenient instruction
Exception - caused by some event during execution of one instruction of current running program (e.g., page fault, bus error, illegal instruction)
Synchronous, must handle exception on instruction that causes exception
Trap - action of servicing interrupt or exception by hardware jump to "trap handler" code

Precise Trap¶

All instructions before the faulting one have fully completed.
No instructions after the faulting one have made any changes.

Process Management¶

More I/O¶

DMA¶

Allow I/O devices to directly read/write main memory

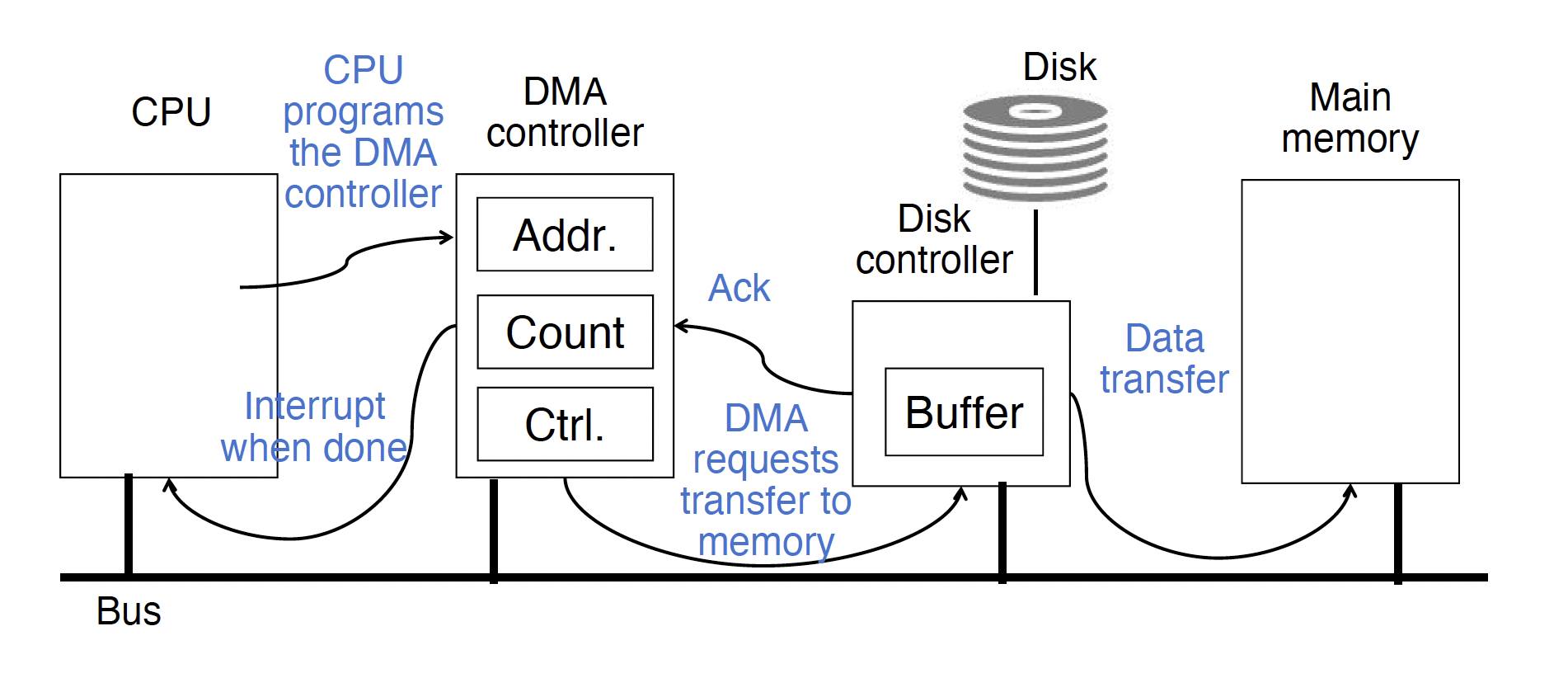

New hardware: the DMA engine, contains registers written by CPU

DMA Incoming Data¶

Receive interrupt from device
CPU takes interrupt, begins transfer
- Instructs DMA engine/device to place data @ certain address
Device/DMA engine handle the transfer
- CPU is free to execute other things
Upon completion, Device/DMA engine interrupt the CPU again

DMA Outgoing Data¶

CPU decides to initiate transfer, confirms that external device is ready
CPU begins transfer
- Instructs DMA engine/device that data is available @ certain address
Device/DMA engine handle the transfer
- CPU is free to execute other things
Device/DMA engine interrupt the CPU again to signal completion

DMA Problems¶

Where in the memory hierarchy do we plug in the DMA engine?

Between CPU and L1:
- Pro: Free coherency
- Con: Thrash the CPU’s working set with transferred data
Between Last-level cache and main memory:
- Pro: Don’t mess with caches
- Con: Need to explicitly manage coherency

How do we arbitrate between CPU and DMA Engine/Device access to memory?

Burst Mode
- Start transfer of data block, CPU cannot access memory in the meantime
Cycle Stealing Mode
- DMA engine transfers a byte, releases control, then repeats - interleaves processor/DMA engine accesses
Transparent Mode
- DMA transfer only occurs when CPU is not using the system bus
