Digital Circuits and Systems¶
Digital System¶
Revisit: Binary System¶
- 0 and 1 (binary digit or bit, unit of information entropy)
-
Decided by the characteristic of semiconductor devices (bi-stable states)
- They can also be considered as voltage-controlled switches
-
Resilient to noise (threshold)
- Supported by Boolean algebra theory (George Boole, 1854)
- Basic operations: ^, |, ~ (Universal set)

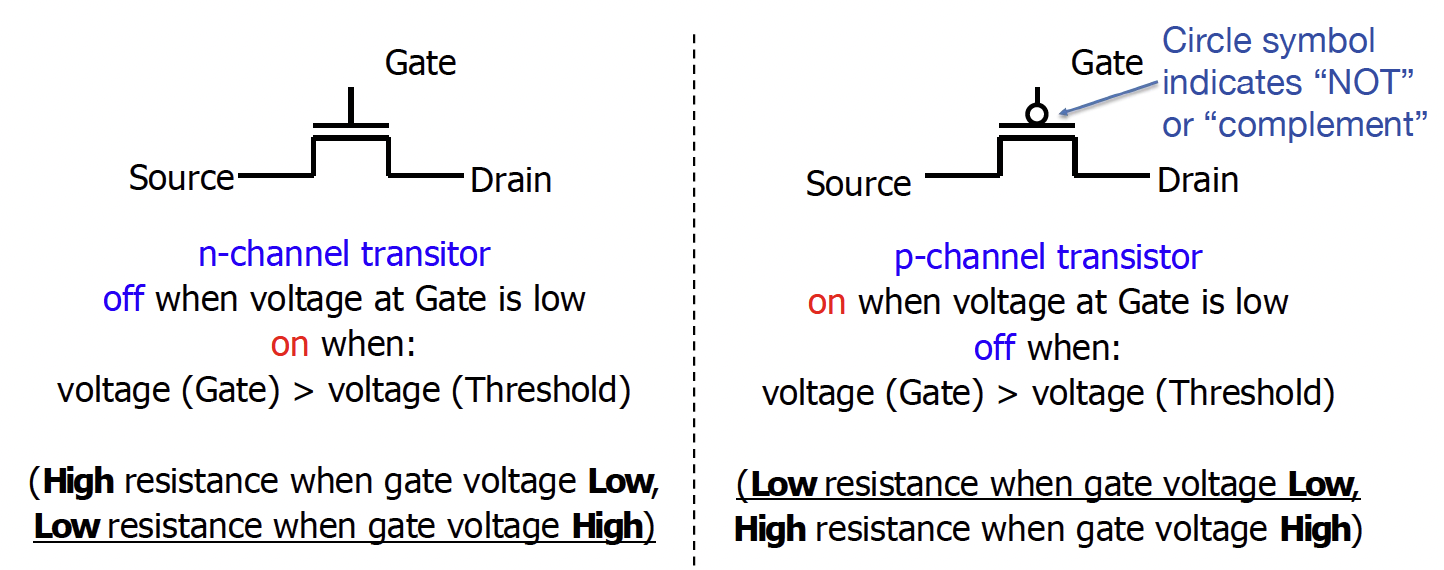

NMOS & PMOS Transistors¶
- Three terminals: source, drain, gate
- N-type transistor (NMOS) pass weak 1 (Vdd - Vth) and strong 0
- P-type transistor (PMOS) pass weak 0 (Vdd - Vth) and strong 1
- Pairs of N/P-type transistors to pass strong 0 and strong 1
Combinational Logic¶
From Logic Gates to Digital Circuits¶
Boolean Algebra¶
Combinational circuits: the ones that the output of the digital circuits depends solely on its inputs; usually built with logic gates without feedback
Steps
- Write down truth table of the desired logic
- Pick the lines with 1 as the output; write them down in Sum of Minterms (Product) form;
- Simplify using Laws of Boolean algebra
Karnough Maps (Optional)¶
Laws of Boolean Algebra¶
| AND form | OR form | |
|---|---|---|
| \(X\overline{X} = 0\) | \(X + \overline{X} = 1\) | Complementarity |
| \(X0 = 0\) | \(X + 1 = 1\) | Laws of 0's and 1's |
| \(X1 = X\) | \(X + 0 = X\) | Identity |
| \(XX = X\) | \(X + X = X\) | Idempotent Laws |
| \(XY = YX\) | \(X + Y = Y + X\) | Commutativity |
| \((XY)Z = X(YZ)\) | \((X + Y) + Z = X + (Y + Z)\) | Associativity |
| \(X(Y + Z) = XY + XZ\) | \(X + YZ = (X + Y)(X + Z)\) | Distribution |
| \(XY + X = X\) | \((X + Y)X = X\) | Absorption |
| \(\overline{XY} = \overline{X} + \overline{Y}\) | \(\overline{X + Y} = \overline{X}\overline{Y}\) | De Morgan's Theorem |
State Elements¶
Flip-flops & Registers¶
Inside a Register¶
- A register can be implemented by multiple D flip-flops (DFFs).
- Each DFF has a data input (D), a clock input (CLK), and a data output (Q).
Finite State Machine (FSM)¶
- Finite state machine (FSM) includes: a set of states, initial/entrance state, rules for transitioning between states, and output function.
Building Synchrounous Circuits
- Step 1: Draw finite state machine of the desired function (we ignore the initialization)
- Step 2: Define/assign binary numbers to represent the states, the inputs and the outputs
- Step 3: Write down the truth table (enumerate input/previous state (and current state) and their corresponding current state (and output))
- Step 4: Use template and decide the combinational block for state transition and output logic
- Otherwise, we can also use simple synchronous circuit blocks to build larger synchronous circuit like for the multi-bit adder
Timing Constraints¶
- Setup Time: The period that the input should be ready before the edge.
- Hold Time: The period that the input should hold its value after the edge.
- CLK-to-Q delay: How long it takes the output to change, as measured from the rising edge of the CLK.
- Critical path: path between input/output that incurs max delay
Estimating the Max Frequency¶
\[
\text{Max Frequency} = \frac{1}{\text{Min Clock Period}}
\]
\[
t_{\text{clk-to-Q}} + t_{\text{comb}} \leq \text{min clock period} + t_{\text{setup}}
\]
